Peristaltik (Hortum) Pompa I43,I55

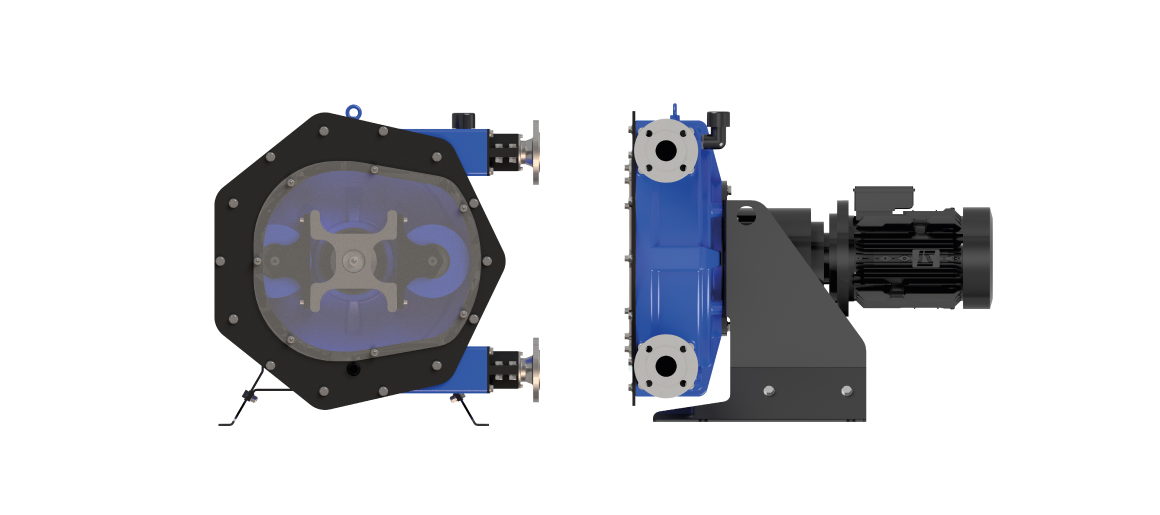

The I43 and I55 models complete the PeriBest peristaltic pump line with a flow rate range between 1000 and 17000 l/h. This can be extended by means of a double-head pump up to 34,000 l/h. These two models are perfect for dosing operations of all types of product, where, thanks to the excellent flow rate control, to the constant flow rate in variable pressure applications and to the gentle pumping, accuracies of up to ±1% can be achieved. They are also ideal for transfer applications of fluids that are highly abrasive, viscous or contain solids in suspension, as the pump has a large solid size capacity.

The lack of valves and mechanical seals, in addition to the heavy duty and horizontal monoblock design with bearing box, makes the PeriBest peristaltic pump a very robust and ideal option for any pumping application however difficult it may be.

The indefinite dry running and the suction capacity of up to 9.5 mWc complements the capacities of the PeriBest product range.

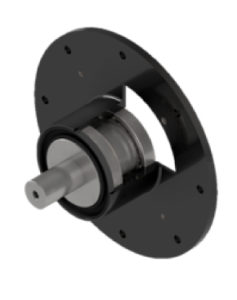

The installation of the bearing box in the pump casing provides perfect alignment as well as full absorption of the loads on the reducer shaft. The bearing box is made up of a central hub which supports the reinforced and oversized bearings plus the pump shaft in order to achieve a compact and very robust assembly.

The incorporation of this assembly provides unbeatable robustness and strength to the pump, even in the most severe conditions with pressures up to 10 bar and in continuous working applications. Maintenance costs are minimised, system downtime is reduced and the life of the reducer is extended.






Download - Peribest I43 - datasheet
Download - Peribest I55 - datasheet
